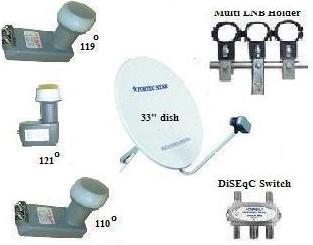

Universal feed support (clamp size 23, 25, 35, 40, 50 mm). Constructed of galvanized steel, finished with a seven step, textured, thermoset powder coat. A hydrophobic agent added to the finish increases water and snow repellent action. Mounts are manufactured from galvanized steel, E-coated for maximum protection. All hardware has a highly corrosive resistant JS-600TM finish. Recommended for western/northern regions or Free-To-Air Signal.

• Effective aperture: 29.9in
• Antenna height: 34.3in
• Antenna width: 31.5in
• Galvanized steel: 20 ga
• Antenna weight: 9.8lbs
• F/D: .59
• Offset angle: 24°
• Focal distance: 17.56in
• Surface accuracy: .016 - .020 in ave.
• Elevation range: 10° to 90°
• Freq range: 10.95 - 12.75 GHZ

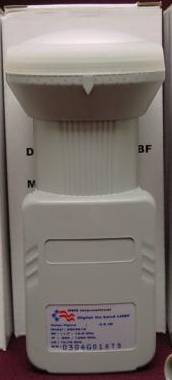

Invacom announces another first in LNB development and products, the CP/LP LNBF.

One LNBF provides simultaneous reception of both linear and circular polarized signals with an incredible 0.3dB noise figure and 55dB gain! The Quad Polar output design allows for twin switched output of the linear signals and twin switched output of the circular signals. Receive both types of satellites with one LNBF. No more hassles of off-setting a 2nd LNBF!

Ideal for motorized dishes. Perfect for fixed dish reception of DirecTV and AMC4.

You will not find a more ideal LNBF for the reception of Dish Network and DirecTV in fringe signal areas. An incredible low noise and high gain LNBF for Dish Network and DirecTV. Compare the .3 dB noise figure and 55dB gain typical specification to a standard circular LNBF with a .7-.9 / 55. LO stability is rated a typical +/- 1MHz! This LNBF will out perform any circular DBS / DSS LNBF on the market!

Designed to integrate seamlessly with Dish Network, DirecTV and MPEG2 DVB-S FTA switches and receivers. The circular DSS LO frequency is standard 11250 and linear FSS LO frequency is 10750.

Why buy a CP/LP LNBF?

One LNBF provides reception of all satellites types in a motorized system.

One LNBF provides simultaneous reception of CP and LP satellites in one orbital position for up to 4 receivers.

One LNBF provides reception to both your DVB-S FTA, Dish Network and DirecTV receivers.

Input Frequency	FSS Band (Linear) 11.7 - 12.2 GHz
	DSS Band (Circular) 12.2 - 12.7 GHz
Output Frequency	FSS 950 -1450 MHz
	DSS 950 -1450 MHz
Noise Figure	0.3 dB typical
Gain	60 dB typical
Gain Ripple	26 MHz bandwidth <+/- 0.5 dB
	FSS <5 dB typical
	DSS <5 dB typical
LO Frequency	FSS 10.75 GHz
	DSS 11.25 GHz
LO Phase Noise	1 KHz -65 dBc/Hz typical
	10 KHz -95 dBc/Hz typical
	100 KHz -110 dBc/Hz typical
LO Stability	+/- 1 MHz typical
Isolation	FSS Cross Polar Isolation >30 dB
	DSS Cross Polar Isolation >23 dB
Two Tone 3rd Order Intercept Point	>10 dBm
Output Connector	4x female F-type
	Impedance 75 Ohm
	Return Loss >10dB
Operating Temperature Range	-40 to +70 deg. C
Storage Temperature Range	-40 to +70 deg. C
Band Polarization
Ports 1 and 3 (FSS Linear)	Vertical 11.5 - 14vdc
	Horizontal 15.5 - 19vdc
Ports 2 and 4 (DSS Circular)	Right 11.5 - 14vdc
	Left 15.5 - 19vdc
Spurious 1000/ 500 MHz	<-65dBm
Output Gain Difference (26 MHz bandwidth)	<6dB
Mechanical	Off-set Design
	F/D 0.65
	40 mm Feedhorn Throat Mount

11.7 to 12.2 GHz standard US frequency

10750 MHz LO frequency

0.3dB Noise Figure

Outputs 950-1450 MHz

40mm throat
